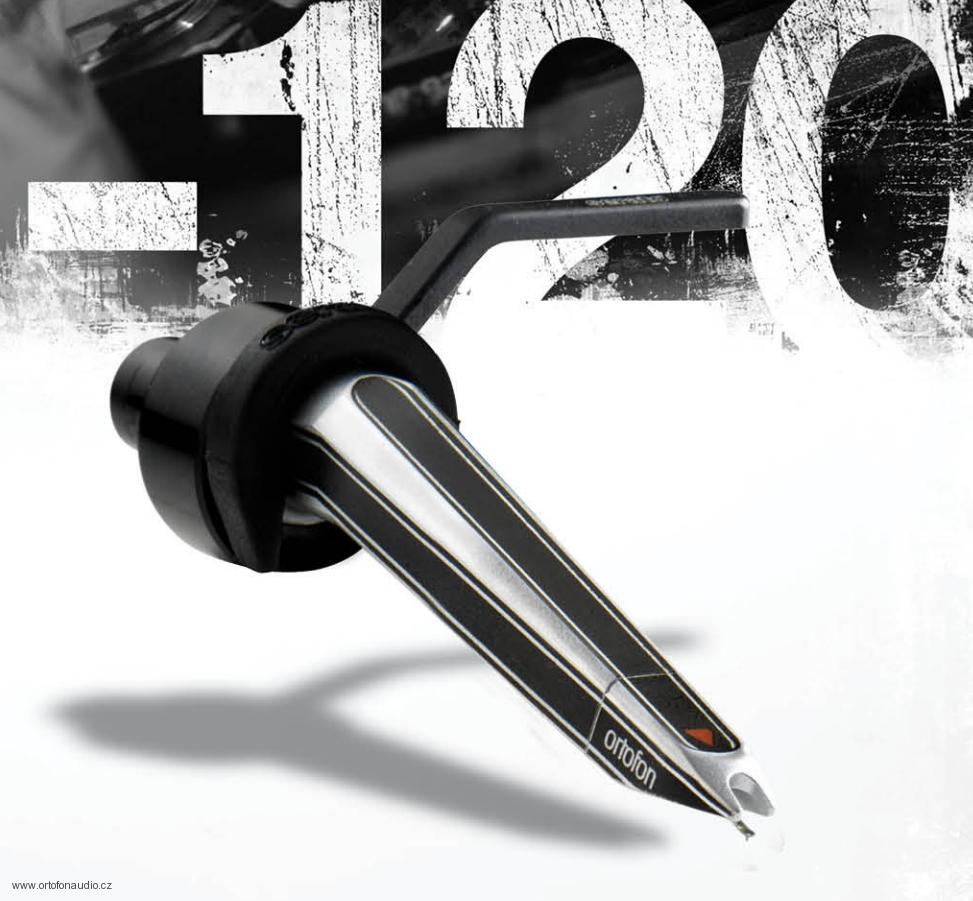

Ortofon Concorde S-120 Single
- Kompletní specifikace
- Ortofon Concorde S-120 SingleSkladem2 850 Kč2 355 Kč bez DPH
A revolutionary new high performance cart for DJs! Exceptional tracking ability of 120 μm!
The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges. Its breakthrough patent pending technology has been designed to provide maximum freedom for DJ performance.
An innovative technology, called asymmetric suspension, takes the cartridge performance to the next level.
Its superior tracking force ensures the S-120 stays in the groove even under extreme live performance conditions.
In addition, its design achieves an unprecedentedly low level of record wear, which helps protect your valuable vinyl.
Output voltage at 1000Hz, 5cm/sec.
Channel balance at 1kHz
Channel separation at 1kHz
Channel separation at 15 kHz
Frequency range at -3dB
20-18.000 Hz +3/- 2dB
Tracking ability at 315 Hz at recomm. tracking force
Compliance, dynamic lateral
11 μm/m N
Stylus tip radius
R 18 μm
Tracking force range
1,5-10,0 g (15-100 mN)
Tracking force recommended
4,0 g (40 mN)
Internal impedance, DC resistance
Recommended load resistance
Recommended load capacitance
Replacement stylus unit
S-120 is available in following configurations:
