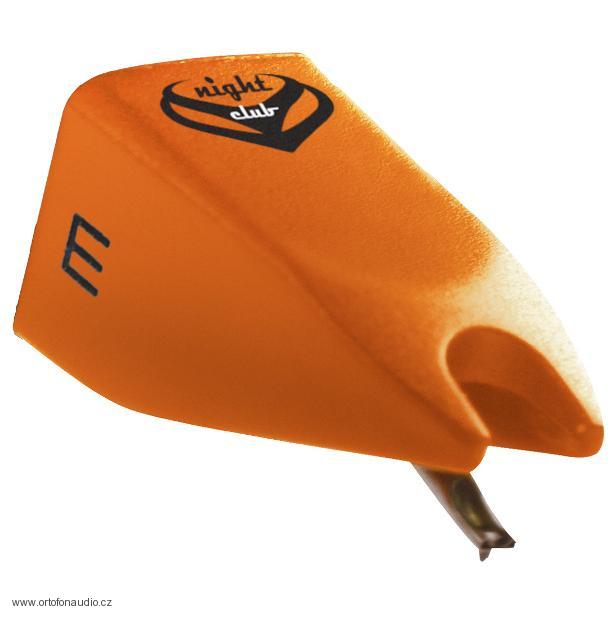

DJ náhradní hrot pro přenosky Ortofon Concorde Nightclub MKII nebo OM Nightclub MKII.

Specifikace:

- Typ hrotu: speciální eliptický
- Frekvenční rozsah: 20 - 22 000 Hz
- Výstupní napětí: 8 mV/1kHz
- Odstup kanálů: 23 dB/1kHz
- Vyvážení kanálů: 1,5 dB/1kHz
- DC odpor: 1000 Ohm
- Indukčnost: 580 mH
- Přítlačná síla: 2 - 5 g
- Hmotnost: 18,5 g

ORTOFON NIGHTCLUB MKII REPLACEMENT STYLUS

Ortofon Nightclub Mk II offers increased output voltage for powerful, energetic sound and enhanced performance from integrated phono preamps such as the ones found in DJ mixers.

The redesigned elliptical stylus provides well-balanced high frequency response and ample low end reproduction.

Technical data:

• Output voltage at 1000Hz, 5cm/sec.: 8 mV
• Channel balance at 1kHz: 1,5 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-22.000 Hz
• Frequency response: 20-20.000 Hz +/-1,5 dB
• Tracking ability at 315 Hz at recommmende tracking force: 80 μm
• Compliance, dynamic lateral: 7 μm/mN
• Stylus type: Special Elliptical
• Stylus tip radius: r/R 13/25 μm
• Tracking force range: 2,0-5,0 g (20-50 mN)
• Tracking force recommended: 3,0 g (30 mN)
• Tracking angle: 20º
• Internal impedance, DC resistance: 1.000 Ohm
• Internal inductance: 580 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
