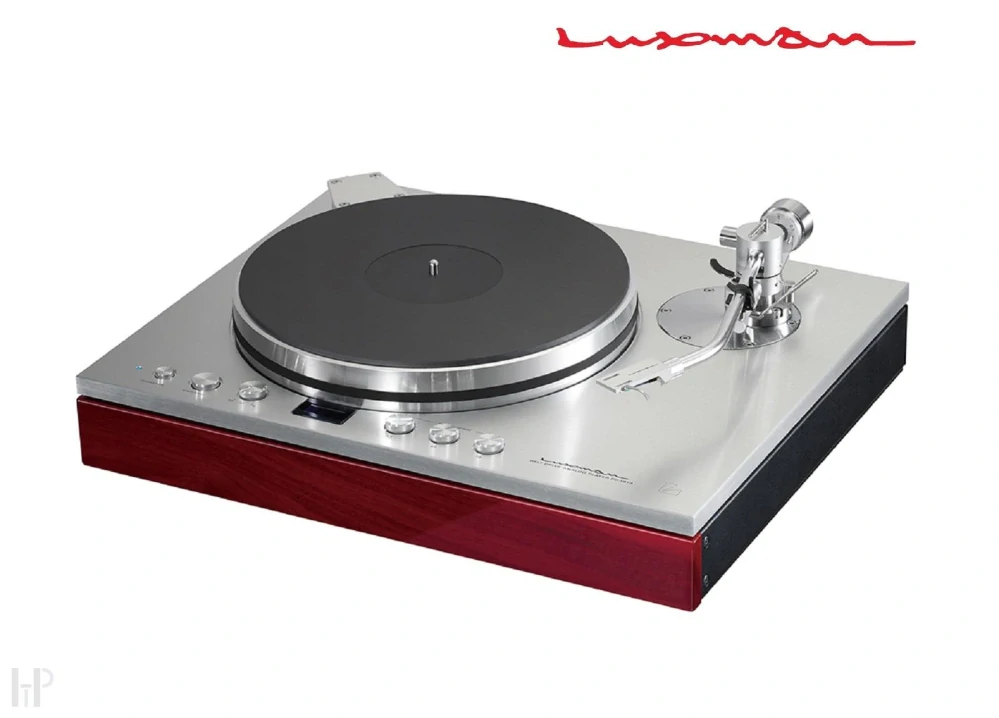

Luxman PD-151

- Kompletní specifikace
- Luxman PD-151Skladembez DPH
Referenční gramofonový přístroj
Spec
Drive system | Belt drive system |
---|---|
Motor | Brushless DC motor with PID control |
Platter | 30cm machined alminum plate |
Revolution | 33 1/3rpm, 45rpm, 78rpm(3 speeds selectable) |
Revolution adjustment range | ±6%(each rotation speed adjustable independently) |
Wow and flutter | 0.04% or less(W.R.M.S.) |
Weight(Platter) | 4.0kg |
Type | Static balanced, S shaped, universal type |
---|---|
Bearing | Single point cross suspension |
Effective length | 229mm |
Overhang | 15mm |
Tracking error angle | +1.9° to -1.1° |
Applicable cartridge weight | 4 to 12g (including headshell 17 to 25g) |
Adjustable height range | 38 to 60mm |
Anti-skating | 0 to 3g |
Power source | 230V~ 50Hz |
---|---|
Power consumption | 6W |
Dimensions | 465 (W) × 133(up to top face of platter)(H)× 393(D) mm |
Net weight | 15.7kg (main unit) |
Accessories | Platter, Headshell, Rubber mat Rubber belt,Platter mount handle (2pieces) EP adaptor, Counterweight Arm adjustment hex wrench set (3types) Flathead screwdriver for rotation speed adjustment phono cable (DIN→RCA : already installed on the unit), Power cable |
