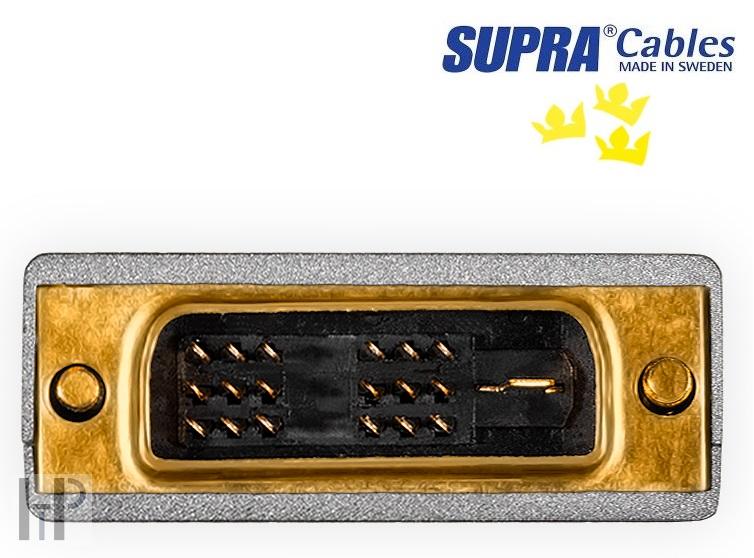

SUPRA HDMI-DVI HD VIDEO 6,0m

- Kompletní specifikace
SUPRA HDMI-DVI HD VIDEO 6,0mSkladem2 290 Kč/ ks1 893 Kč bez DPH
Mechanical Specifications
| Standard | HDMI 2.0 High speed ♦ DVI-D 18+1 | |
| Connection configuration | Single-Link | |
| Connectors | 1 x HDMI and 1 x DVI | piece |
| Signal direction: | Bi-directional | |
| Applications e.g. | Projectors and computer displays with DVI inputs, computers with DVI outputs to HDMI displays | |
| Maximal resolution | 1080p @ 24, up to 1920 x 1200 (16/10 aspect ratio, most often computer displays) | |
| Solder tin | Almit SR-34 Super | |
| Cable clamping | 1 x Molded HDMI or 1 x Supra HDMI Met-S/B with moulded contact body and 1 x Supra DVI-D 18+1 with moulded contact body connectors | pieces |
| Cable | SUPRA HD5 single-link | |
| Lead area | 5 x TMDS 0.26 / 23 | mm2 / AWG |
| Lead material | Solid, oxygen-free coppar | |
| Di-electric (insulation) | Air-injected PE foam | |
| Inner shield / coverage | Aluminized PET foil / 100 | % |
| Communication leads | 5 x 0.129 / 26 | mm2 / AWG |
| Di-electric (insulation) | PE | |
| Outer shield / coverage | Aluminized PET foil / 100 | % |
| Jacket | Heat and age resistant PVC | |
| Flame retardancy | No | |
| Cable outer dimension | Ø 9.5 | mm |
| Weight without connectors | 0.106 | kg/m |
Electrical performance
| Resistance | 82 | Ohm / km |
| Capacitance | 42 | pF / m |
| Characteristic impedance | 100 | Ohm |
| Velocity factor | 0.8 x | C (speed of light) |
